Experimenting with ribbons in LiveCode (prelude)

It's a rainy summer afternoon here in Belgium - what better time to pick up on an old experiment, and share the thought process with you, my fellow LiveCode developers? As you may have guessed from this post's subject, we'll be building a cross-platform Ribbon control using only LiveCode controls and behaviors.
Ribbons were introduced by Microsoft in Office 2007, and replace the traditional menubar and toolbar combination with a single tabbed toolbar. The primary goal: provide a better structure for the myriad of available options, allowing the user to discover these options without becoming overwhelmed.

It's something Microsoft developers have been acutely aware of for a long time, but their past forays into this type of user experience had been a mixed success. Take adaptive menus: I'm sure I wasn't the only one to loathe the automatic hiding of unused options that first appeared around 2000.
Sure, there was a chevron widget to bring back the hidden options, but the whole approach was confusing as the user interface became unpredictable. Have you ever had to support an application where the user could completely customize the look-and-feel, including menus and toolbars? Then you know the sort of nightmare this can induce.

Anyway, be sure to check out The Story of the Ribbon by Jensen Harris, and his related series of blog entries on this topic: Why the UI?

Now let's take a look at some screenshots of the ribbon across different Microsoft applications. Here's the original Word 2007 edition:

Followed by the latest Word 2010 edition:

And here's WordPad as it first shipped with Windows 7:

Finally, a screenshot of Word 2011 for Mac:

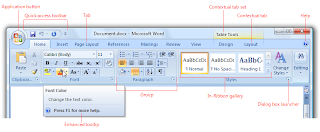

But before we work on implementing it, what are the different parts of the ribbon?

Hmm, looking at all these screenshots, it's clear some compromises are inevitable to build our ribbon in pure LiveCode:

1. Application menu and quick access toolbar
- in Office 2007, the application menu (the Jewel or Orb as it's sometimes referred to) fuses with the quick access toolbar into the window titlebar.
- we could replace the standard window decorations with our own implementations, but this brings its own challenges (such as smooth window resizing)
- in later releases, Microsoft decided the application menu could be toned down a bit, and moved it into a button next to the ribbon tabs, so let's just skip this problem altogether and go for the Windows 7 WordPad approach
- that leaves us with the quick access toolbar in the window titlebar, but as this can also be displayed beneath the ribbon, we'll sidestep the issue and simply move the quick access toolbar to the bottom of the ribbon, shall we?

2. Application menu panel
- before Office 2010, the application menu panel wasn't constrained to the window but in its own layer
- this makes it a bit tricky, but we'll get to it in a future post

3. Windows vs. Mac
- while the Windows version dispensed with the menubar entirely, the Mac version still has a complete menubar, but no application menu button
- we just decided to move the quick access toolbar out of the window titlebar and to the bottom of the ribbon, but on Mac the user has no option to move this toolbar and it's always between the window titlebar and the ribbon tabs
- the ribbon group titles have different locations as well: at the bottom of the ribbon group on Windows, at the top on Mac

4. Out of scope
For various reasons, the following ribbon features won't be in scope for this experiment
- contextual tabs
- galleries
- enhanced tooltips

So we'll compromise, but should still have a pretty good ribbon implementation at the end of the experiment - not just a one-off ribbon implementation, but a generic one which you can modify from script. Here's what we're aiming for:

It won't be pixel-prefect, but we can get pretty close. In our first installment, we'll take care of the groundworks. Hang in there - I'll post it shortly.

In the meantime, you should definitely read up on these MSDN articles:
- Ribbon design process
- UX Guidelines - Ribbons
